Accessories

Precision tooling, handling equipment, and quality control systems for wire and cable production

4
Main Categories
800+
Product Variants
15+
Countries Served
24/7
Technical Support

Accessory Categories

Click on each category to view detailed technical specifications, available types, and key features.

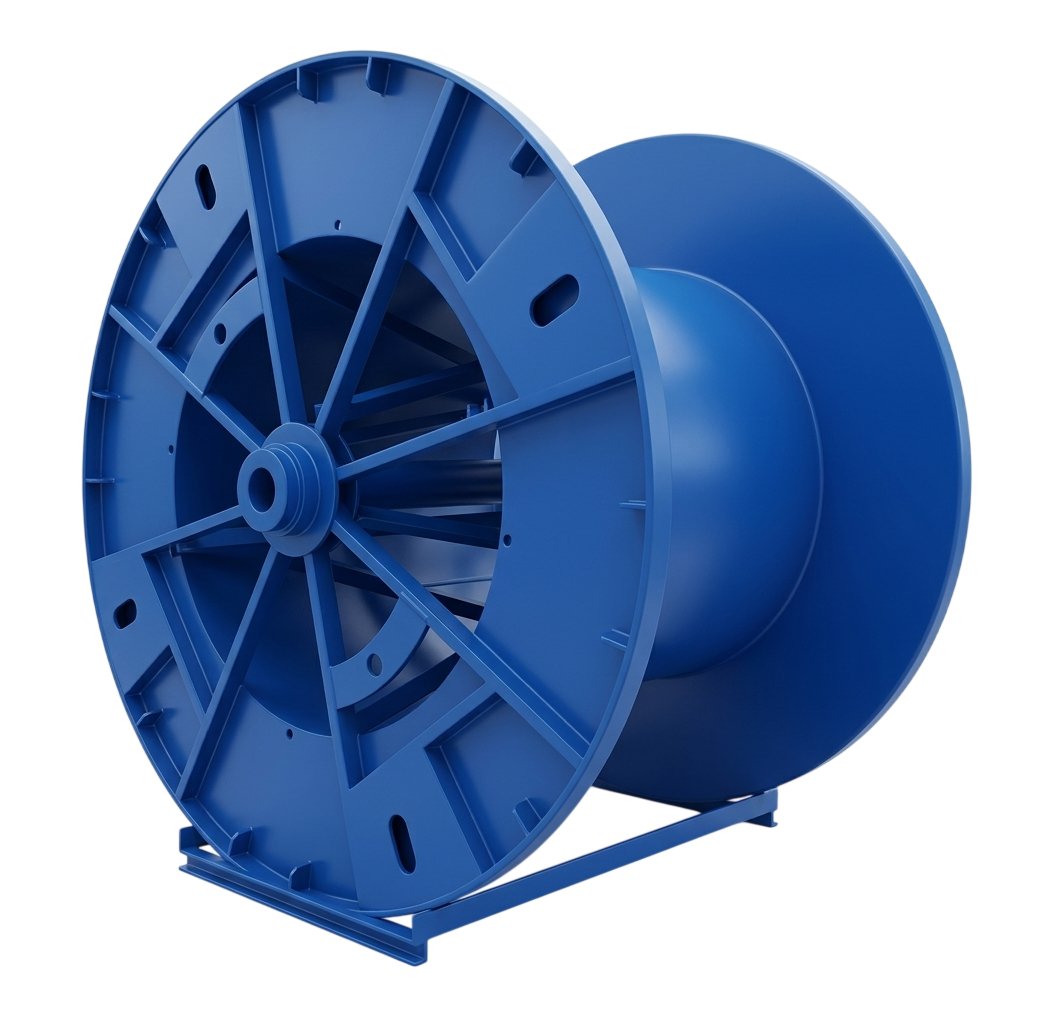

Reels 1

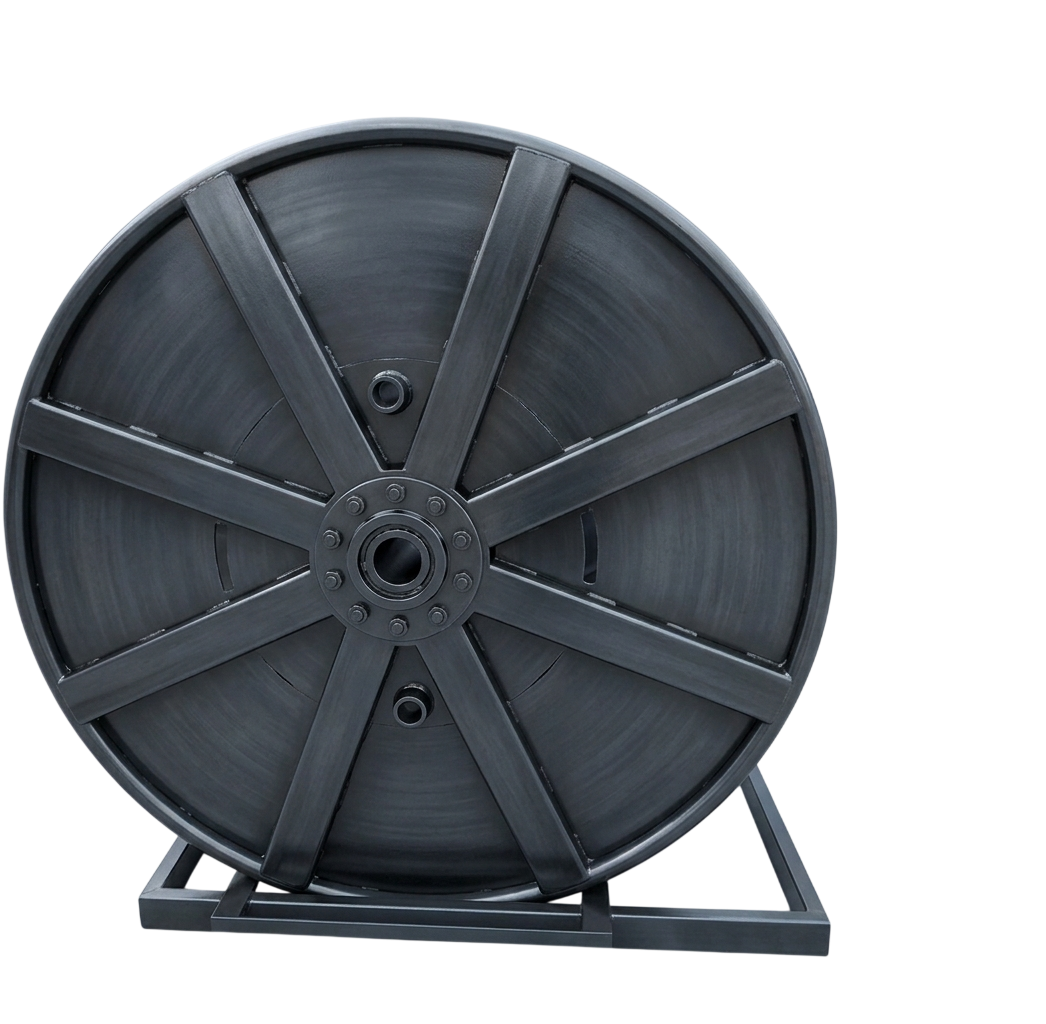

Reels 2

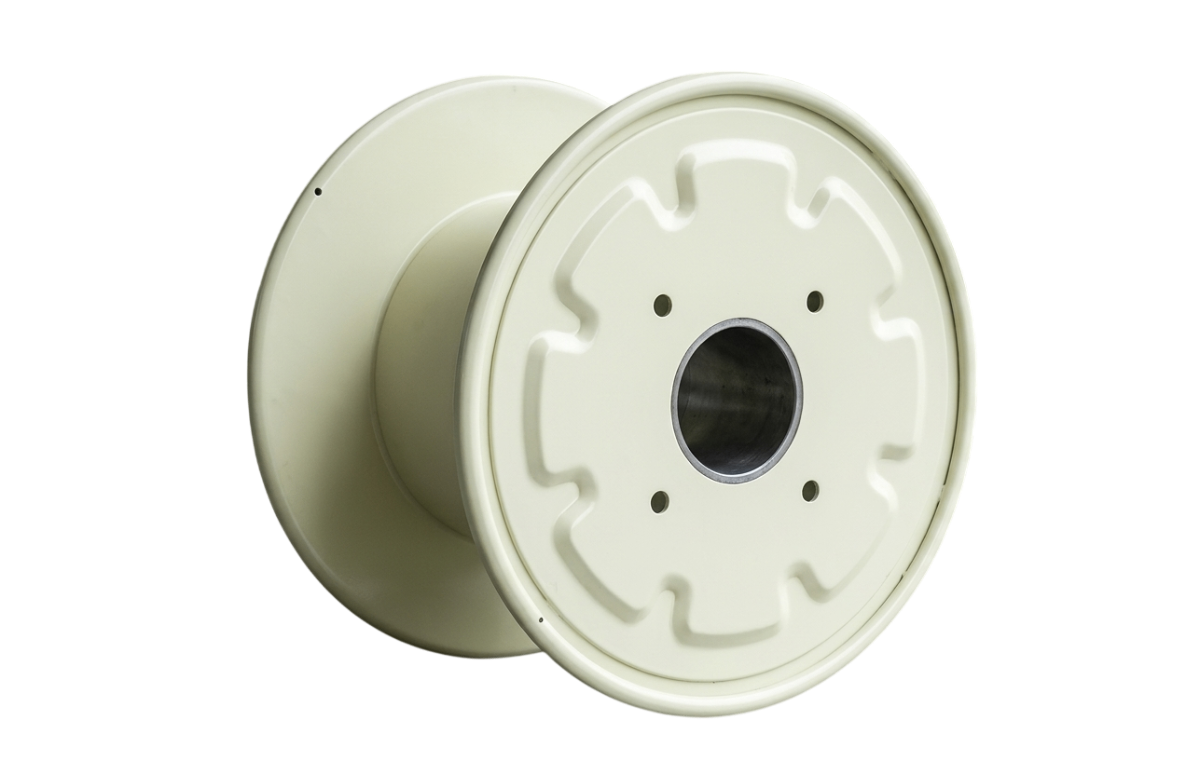

Reels 3

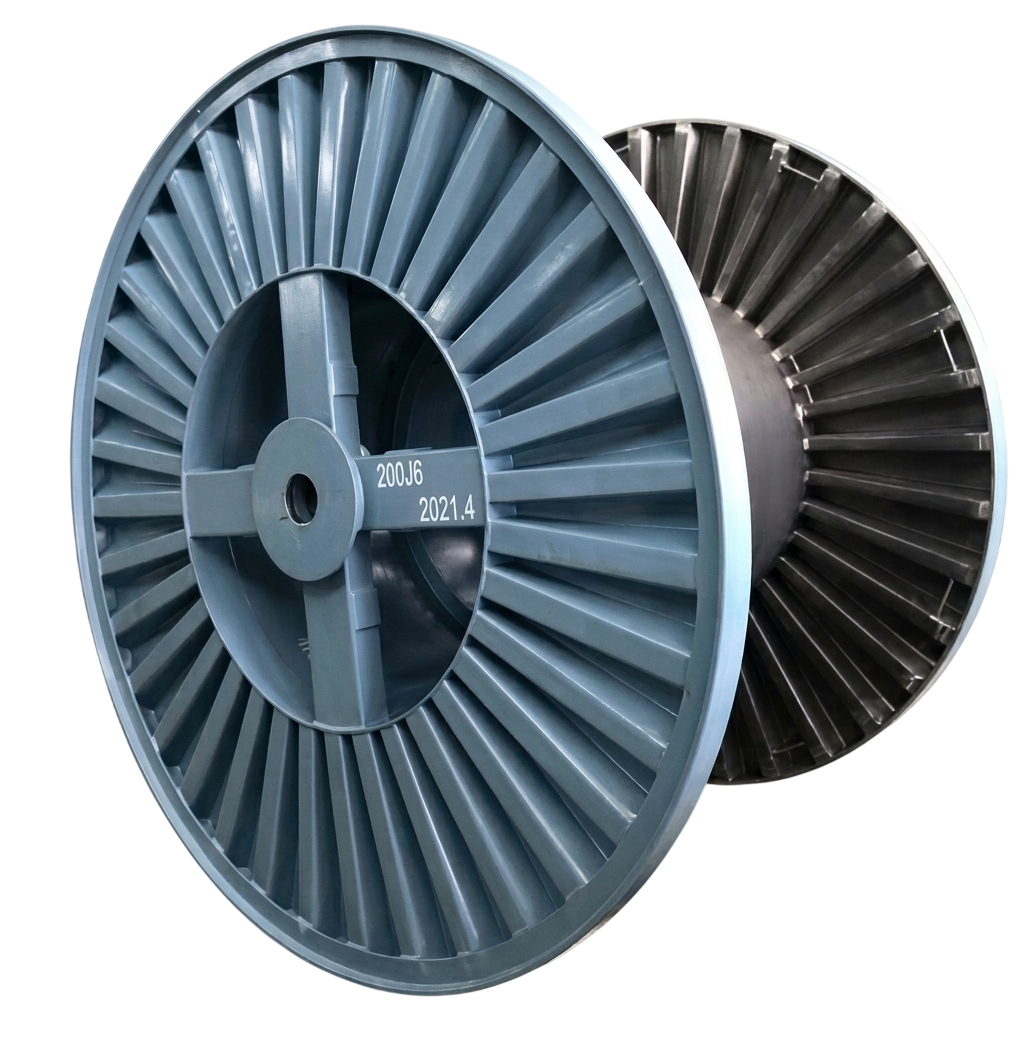

Reels 4

Heavy-duty metal reels, bobbins, and drums for wire drawing, stranding, and cable production. Sizes and specifications are fully customizable per customer requirements. Available in high-speed, double-flange, flat, corrugated, and punching types — all manufactured from ABS, Steel, and Stainless Steel. Dynamic balancing ensures smooth operation at speeds from 25 m/s to 50 m/s. Applicable to cables, ferrous and non-ferrous wire, drawing, stranding, and bunching machines.

Technical Specifications

Flange Diameter
Ø100 – 2000mm
Materials
ABS, Steel, Stainless Steel
Speed Rating
25 – 50 m/s
Balancing
Dynamic balanced

Key Features

Sizes as per customer specificationsDynamic balancing for high-speed operationABS, steel, and stainless steel constructionApplicable to all wire and cable typesFor drawing, stranding & bunching machines

Available Types

Machine Type Bobbins
High-voltage, medium and low-voltage, XLPE, stranding, extruding, laying-up, and armoring applications. Dimensions as per customer specifications.
Double Flange High Speed Bobbin
Dynamic balancing and speed meeting 25 m/s – 50 m/s. Applicable to cables, ferrous and non-ferrous wires. For drawing, stranding and bunching machines.
Flat Bobbin
Flange diameters from 200mm to 800mm. Dynamic balancing and speed meeting 25 m/s to 50 m/s. Applicable to cables, ferrous and non-ferrous wires.
Corrugated Bobbin
Flange diameters from 100mm to 1250mm. For cable, steel wire, steel rope, copper, aluminium, and similar applications.
Punching Bobbin
Flange diameters from 200mm to 1250mm. Applicable to cables, steel wires, steel ropes, copper, aluminium, and welding wires.
Standard Bobbins
High-speed bobbins in ABS, steel, and stainless steel. Applicable to cables, ferrous and non-ferrous wire, drawing, stranding and bunching machines.

Quality Components

All accessories come with certificates of conformity and comply with international standards

Premium
Quality
OEM
Compatible
100%
Tested

Need Specific Components?

Our technical team can help you find the right accessories and components for your equipment

Contact Technical Support
